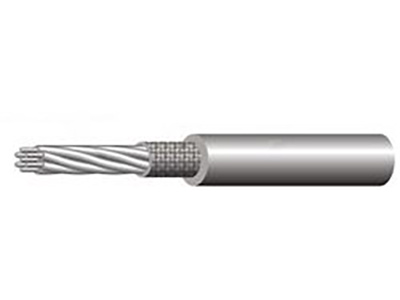

UL21457 Multi-conductor Shielded Cable 多芯雙層屏蔽電線
■說明:
?額定溫度:80℃
?額定電壓:300V
?參考標準:UL 758, UL 1581,
CSA C22.2 No.210
?導體使用絞合裸銅,鍍錫銅線
?導體線規:30 - 16 AWG
?耐燃改性聚苯醚 — 聚乙烯絕緣
?編織或斜包屏蔽
?燃燒等級:UL VW-1 及CSA FT1 垂直耐燃測試
■ 應用:
?用于電子設備內部聯機
■ PRODUCT DESCRIPTION:
?Rated temperature: 80°C
?Rated voltage: 300V
?Reference standard: UL 758, UL 1581,
CSA C22.2 No.210
?Stranded bare or tinned copper conductor
?Gauge size: 30 - 16AWG
?mPPE-PE insulation
?Shielded with braiding or spiralmPPE-PE jacket
?Flammability grade: UL VW-1&CSA FT1 vertical flame test
■ APPLICATIONS:
?For internal wiring of electronic equipmen
■產品結構 CABLE CONSTRUCTION | ||||||||||
Part No. 型號 | Conductor 導體 | Cores 芯數 | Insulation 絕緣 | Overall Shielding 外屏蔽 | Jacket 護套 | Max. Conductor DC Resistance 最大導體電阻 (Ω/km) | ||||
AWG 線規 | No./mm 線數/線徑 | Diameter 線徑 (mm) | Material 材質 | Diameter 線徑 (mm) | Material 材質 | Diameter 線徑 (mm) | ||||
UL21457-001 | 26 | 7/0.16 | 0.48 | 3C | mPPE-PE | 1.00 | Braiding / Spiral | mPPE-PE | 3.8 | 150 |
UL21457-002 | 26 | 7/0.16 | 0.48 | 4C | 1.00 | 4.1 | 150 | |||
UL21457-003 | 24 | 7/0.20 | 0.6 | 5C | 1.12 | 4.8 | 94.2 | |||
UL21457-004 | 24 | 7/0.20 | 0.6 | 6C | 1.12 | 5.2 | 94.2 | |||
UL21457-005 | 22 | 17/0.16 | 0.76 | 7C | 1.28 | 5.7 | 59.4 | |||
UL21457-006 | 22 | 17/0.16 | 0.76 | 8C | 1.28 | 6.2 | 59.4 | |||
UL21457-007 | 20 | 26/0.16 | 0.94 | 3C | 1.46 | 5 | 36.7 |
