當前位置: 首 頁 > 產品展示 > UL電子線 > UL1061 Hook-Up Wire PVC 電子線
UL1061 Hook-Up Wire PVC 電子線

UL1061 Hook-Up Wire PVC 電子線

  • 所屬分類:UL電子線
  • 瀏覽次數:0
  • 發布時間:2022-08-06 08:55:23
  • 產品概述

UL1061 Hook-Up Wire PVC 電子線

■說明:
●導體使用單條或絞線,30-16AWG裸軟銅或鍍錫軟銅線
●半硬PVC絕緣
●額定溫度:80℃;額定電壓:300volts
●可通過UL VW-1 垂直耐燃測試
●使用標準厚度,易剝,截斷容易
●參考標準:UL 758,UL 1581

■應用:
●一般電子,電子及電器設備

■PRODUCT DESCRIPTION:
●Tinned or bare,stranded or solid copper conductor,30-16AWG.
●Color-coded SR-PVC insulation.
●Rated temperature:80℃. Rated voltage:300 volts.
●Passes UL VW-1 vertical flame test.
●Uniform thickness of wire to ensure easy stripping and cutting.
●Reference standard:UL subject 758,UL 1581.

■APPLICATIONS:
●Internal wiring of computers,office equipment and other
electronic and electrical equipment.


UL1061 Hook-Up Wire PVC 電子線

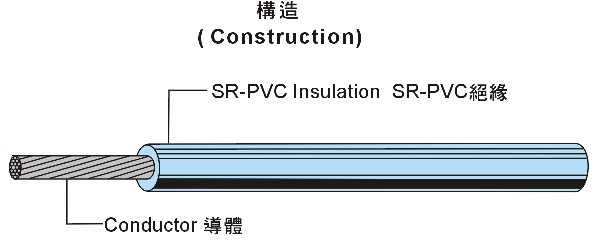

■產品結構CABLE CONSTRUCTION
Conductor
導體
InsuIation
Thickness
Overall
Diameter
Maximum Resistance
at 20℃
線號 線數/線徑 外徑 絕緣厚度 完成外徑 最大導體電阻
AWG No./mm mm mm mm ohm/km
30 7/0.102 0.30 0.26 0.82 354
28 7/0.127 0.38 0.26 0.90 223
26 7/0.16 0.48 0.26 1.00 139
24 11/0.16 0.61 0.27 1.15 88.9
22 17/0.16 0.76 0.26 1.28 57.5
20 26/0.16 0.94 0.26 1.46 34.6
18 41/0.16 1.18 0.26 1.70 23.3
16 26/0.254 1.49 0.26 2.02 15.1
