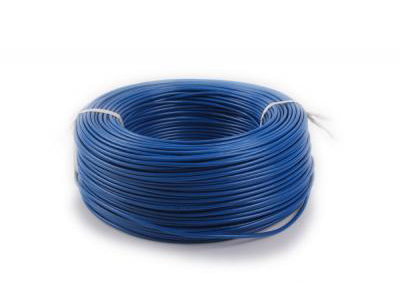

■說明:
●導體使用單條或絞線,裸軟銅或鍍錫軟銅線
●PVC絕緣,PVC被覆
●額定溫度、額定電壓:UL 1617:105℃,600Volts; UL 1618:80℃,300Volts
●使用標準厚度,易剝,截斷容易
●可通過UL VW-1 垂直耐燃測試
●被覆體厚度5-40mils (0.127-1.016mm)
●參考標準:UL 758,UL 1581
■應用:
●用于電子及電器設備內部配線。
■PRODUCT DESCRIPTION:
●Stranded of solid,tinned or bare copper conductor.
●Color-coded PVC insulation and PVC jacket.
●Rated UL 1617:105℃,600 volts. UL 1618:80℃,300 Volts.
●Uniform thickness of wire to ensure easy stripping and cutting.
●Passes UL VW-1 vertical flame test.
●Jacket thickness:from 5 to 40 mils (0.127 to 1.016mm).
●Reference standard:UL subject 758,UL 1581.
■APPLICATIONS:
●Internal wiring of electronic and electrical equipment.
■產品結構 CABLE CONSTRUCTION | ||||||
UL Style | Conductor 導體 | Insulation Thickness | Jacket Thickness | OveralI Diameter | ||
線號 | 線數/線徑 | 外徑 | 絕緣厚度 | 被覆厚度 | 完成外徑 | |
AWG | No./mm | mm | mm | mm | mm | |
UL 1617 | 26 | 7/0.16 | 0.48 | 0.79 | 0.40 | 2.90 |
24 | 11/0.16 | 0.61 | 3.00 | |||
22 | 17/0.16 | 0.76 | 3.20 | |||
20 | 26/0.16 | 0.94 | 3.40 | |||
18 | 16/0.254 | 1.16 | 3.60 | |||
16 | 26/0.254 | 1.49 | 3.90 | |||
14 | 41 /0.254 | 1.88 | 4.30 | |||
12 | 65/0.254 | 2.37 | 4.80 | |||
10 | 105/0.254 | 3.01 | 5.80 | |||
UL 1618 | 26 | 7/0.16 | 0.48 | 0.40 | 0.41 | 2.10 |
24 | 11/0.16 | 0.61 | 2.20 | |||
22 | 17/0.16 | 0.76 | 2.40 | |||
20 | 26/0.16 | 0.94 | 2.60 | |||
18 | 16/0.254 | 1.16 | 2.90 | |||
16 | 26/0.254 | 1.49 | 3.30 | |||
14 | 41/0.254 | 1.88 | 3.50 | |||
12 | 65/0.254 | 2.37 | 4.00 | |||
10 | 105/0.254 | 3.01 | 5.10 |
