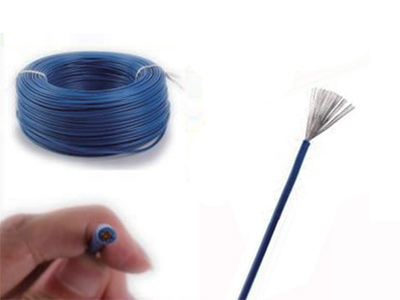

■產品說明
●額定溫度:90℃
●額定電壓:交流1000V/直流1200V
●參考標準:UL758,UL1581,CSA C22.2No.210.2
●導體使用單支或絞合30~10AWG 鍍錫或裸銅
●PVC 絕緣,符合ROHS 環保標準
●通過UL VW-1、CSA FT1 及JQA -F-Mark 阻燃測試
●使用標準絕緣厚度、易裁線、易剝皮
●用于一般電子、電器設備內部連接線
■ PRODUCT DESCRIPTION
●Rated temperature:90℃
●Rated voltage:1000VAC/1200VDC
●Reference standard:UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor 30~10AWG
●PVC insulation , comply with ROHS environmental standard
●Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
■ 產品結構 CABLE CONSTRUCTION | ||||||
導體 CONDUCTOR | 絕緣 INSULATION | 最大導體電阻 MAX.COND. RESISTANCE (Ω/km,20℃,DC | 耐壓強度 DIELECTRIC STRENGTH (VAC1min) | |||
規格 AWG | 構造 CONSTRUCTION (No./mm) | 外徑 DIA. (mm) | 厚度 THICKNESS (mm) | 外徑 DIA. (mm) | ||
30 | 7/0.10 | 0.30 | 0.80 | 1.90 | 381.00 | 3000 |
28 | 1/0.32 | 0.32 | 0.79 | 1.90 | 227.00 | 3000 |
7/0.127 | 0.38 | 0.81 | 2.00 | 239.00 | ||
7/0.127OS-1* | 0.38 | 0.81 | 2.00 | 239.00 | ||
26 | 1/0.404 | 0.40 | 0.80 | 2.00 | 143.00 | 3000 |
7/0.16 | 0.48 | 0.81 | 2.10 | 150.00 | ||
7/0.16 OS-1* | 0.48 | 0.81 | 2.10 | 150.00 | ||
24 | 1/0.511 | 0.51 | 0.80 | 2.10 | 89.30 | 3000 |
11/0.16 | 0.61 | 0.82 | 2.25 | 94.20 | ||
7/0.20OS-1* | 0.60 | 0.83 | 2.25 | 94.20 | ||
22 | 1/0.643 | 0.64 | 0.80 | 2.25 | 56.40 | 3000 |
17/0.16 | 0.76 | 0.82 | 2.40 | 59.40 | ||
7/0.254 OS-1* | 0.76 | 0.82 | 2.40 | 59.40 | ||
20 | 1/0.813 | 0.81 | 0.80 | 2.40 | 35.20 | 3000 |
26/0.16 | 0.94 | 0.81 | 2.55 | 36.70 | ||
7/0.32OS-1* | 0.96 | 0.80 | 2.55 | 36.70 | ||
18 | 1/1.024 | 1.02 | 0.82 | 2.65 | 22.20 | 3000 |
41/0.16 | 1.18 | 0.81 | 2.80 | 23.20 | ||
7/0.404OS-1* | 1.20 | 0.80 | 2.80 | 23.20 | ||
16 | 1/1.29 | 1.29 | 0.80 | 2.90 | 14.00 | 3000 |
26/0.254 | 1.49 | 0.81 | 3.10 | 14.60 | ||
14 | 1/1.60 | 1.60 | 0.80 | 3.20 | 8.78 | 3000 |
41/0.254 | 1.88 | 0.81 | 3.50 | 8.96 | ||
12 | 6/0.254 | 2.36 | 0.82 | 4.00 | 5.64 | 3000 |
10 | 7/0/15/0.254 | 3.40 | 0.83 | 5.05 | 3.54 | 3000 |
