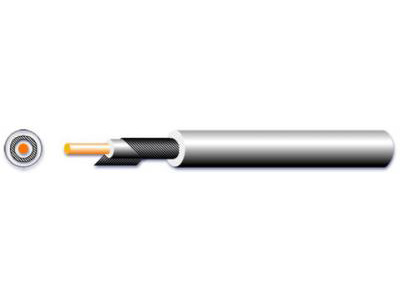

UL1777 Single Shielded Wire 單芯隔離線
■ 說明:
●導體使用單條或絞線,30-40AWG裸軟銅
或鍍錫軟銅線
●SR PVC 絕緣
●裸軟銅或鍍錫軟銅纏繞隔離
●單芯PVC被覆
●額定溫度: 80 ℃ ; 額定電壓: 300volts
●可通過UL VW-1SC 垂直耐燃測試
●參考標準: UL 758 , UL 1581
■ 應用:
●用于錄音錄音工作室,音響系統,電子電路。
■ PRODUCT DESCRIPTION
●Tinned or bare,stranded or solid copper conductor,
30-40AWG
●SR PVC insulation.
●Tinned or bare copper wire spiral shield.
●Color-coded PVC jacket single core.
●Rated temperature: 80 ℃ .Rated voltage:300 volts.
●Passes UL VW-1SC vertical flame test.
●Reference standard :UL subject 758, UL 1581.
■ APPLICATIONS
●For use in recording studios

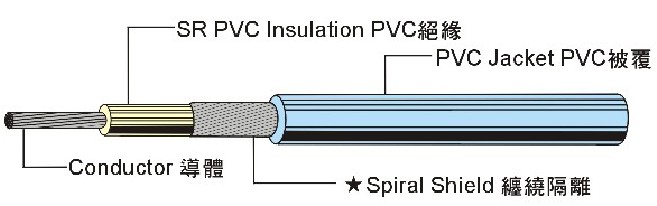

■ 產品結構 CABLE CONSTRUCTION | |||||
Conductor 導體 | Insulation Thickness | Spiral Shield | Jacket Thickness | Overall Diameter | |
線號 | 線數/線徑 | 絕緣厚度 | ★纏繞隔離 | 被覆厚度 | 完成外徑 |
AWG | No./mm | mm | No./mm | mm | mm |
30 | 7/0.102 | 0.23 | 24/0.10 | 0.68 | 2.32 |
30 | 7/0.102 | - - - | 2.12 | ||
28 | 7/0.127 | 26/0.10 | 2.40 | ||
28 | 7/0.127 | - - - | 2.20 | ||
26 | 7/0.16 | 30/0.10 | 2.50 | ||
26 | 7/0.16 | - - - | 2.30 | ||
24 | 11/0.16 | 33/0.10 | 2.63 | ||
24 | 11/0.16 | - - - | 2.43 | ||
22 | 17/0.16 | 38/0.10 | 2.78 | ||
22 | 17/0.16 | - - - | 2.58 | ||
20 | 26/0.16 | 44/0.10 | 2.96 | ||
20 | 26/0.16 | - - - | 2.76 | ||
18 | 41 /0.16 | 51/0.10 | 3.20 | ||
18 | 41 /0.16 | - - - | 3.00 | ||
16 | 26/0.254 | 61/0 .10 | 3.51 | ||
16 | 26/0.254 | - - - | 3.31 |
