UL2547 Multi-Core Shielded Wire 多芯隔離線
■說明:
●導體使用絞線,30 - 16AWG裸軟銅或鍍錫軟銅線
●半硬PVC絕緣,芯線類似UL 1061
●2芯或3芯
●裸軟銅或錫軟銅線纏繞隔離
●PVC被覆
●額定溫度:80℃; 額定電壓:無規定
●可通過UL VW-1SC 垂直耐燃測試
●參考標準:UL 758,UL 1581
■應用:
●用于錄音,錄音工作室,音響系統,電子電路
■PRODUCT DESCRIPTION:
●Tinned or bare,stranded or solid copper conductor,30-16AWG .
●Color-coded PVC insulation similar to UL 1061.
●Two or three cores.
●Tinned or bare copper wire spiral shield.
●PVC jacket.
●Rated temperature:80℃.Rated voltage not specified.
●Passes UL VW - 1SC vertical flame test.
●Reference standard:UL subject 758,UL 1581.
■APPLICATIONS
●For use in recording studios,sound systems and electronic circuits.

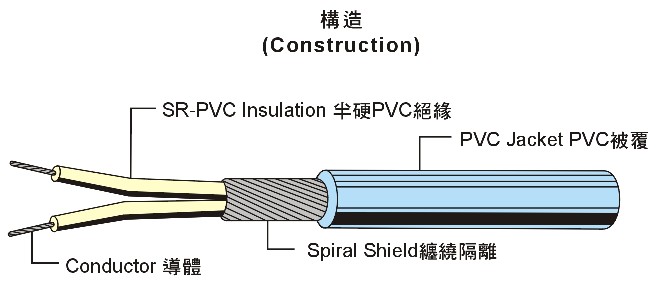

■ 產品結構 CABLE CONSTRUCTION: | ||||||
Conductor 導體 | InsuIation Thickness | Spiral Shield | Jacket Thickness | Overall Diameter | No. Of core | |
線號 | 線數/線徑 | 絕緣厚度 | 纏繞隔離 | 被覆厚度 | 完成外徑 | |
AWG | No./mm | mm | No./m m | mm | mm | |
30 | 7/0.102 | 0.26 | 44/0.10 | 0.40 | 2.64 | 2-cores 2芯 |
28 | 7/0.127 | 46/0.10 | 2.80 | |||
26 | 7/0.16 | 54/0.10 | 3.00 | |||
24 | 11/0.16 | 60/0.10 | 3.26 | |||
22 | 17/0.16 | 62/0.12 | 3.60 | |||
20 | 26/0.16 | 72/0.12 | 3.96 | |||
18 | 41/0.16 | 82/0.12 | 4.44 | |||
16 | 26/0.254 | 98/0.12 | 5.08 | |||
30 | 7/0.102 | 0.26 | 49/0.10 | 0.40 | 2.77 | 3-cores 3芯 |
28 | 7/0.127 | 53/0.10 | 2.94 | |||
26 | 7/0.16 | 54/0.10 | 2.90 | |||
24 | 11/0.16 | 69/0.10 | 3.43 | |||
22 | 17/0.16 | 72/0.12 | 3.76 | |||
20 | 26/0.16 | 82/0.12 | 4.14 | |||
18 | 41 /0.16 | 96/0.12 | 4.66 | |||
16 | 26/0.254 | 114/0.12 | 5.35 |
