當前位置: 首 頁 > 產品展示 > UL隔離線 > UL2835 網線

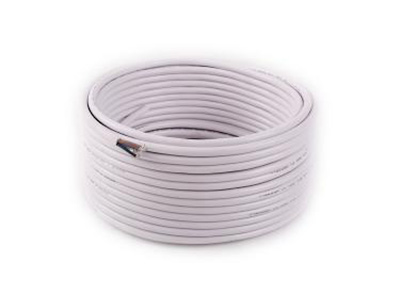

UL2835 網線

UL2835 網線

  • 所屬分類:UL隔離線
  • 瀏覽次數:0
  • 發布時間:2022-08-06 11:04:40
  • 產品概述

UL2835 網線

■ 說明:
● 導體使用裸軟銅或鍍錫軟銅絞線
●PVC或PE或PP絕緣
●裸軟銅或鍍錫軟銅線地線
●可加上裸軟銅或鍍錫軟銅線編織隔離
●PVC被覆,也可采用NC-PVC被覆
●額定溫度:60℃;額定電壓:30volts
●可通過UL VW-1 垂直耐燃測試
●參考標準:UL 758,UL 1581

■ 應用:
●低壓電子電器設備內部用線  網絡(luò )線,常用的網絡(luò )工程的網絡(luò )線材。

■ PRODUCT DESCRIPTION:
● Tinned or bare stranded copper conductor.
● Color-coded PVC or PE or PP insulation.
● Tinned or bare copper drain wire.
● Tinned or bare copper wire braid shield available.
● PVC jacket, Non-migration PVC jacket available.
● Rated temperature:60℃. Rated voltage:30 volts.
● Passes ULVW-1 vertical flame test.
● Reference standard:UL subject 758,UL1581.

■ APPLICATIONS
●Internal wiring in low voltage circuits of electronic equipment.


UL2835 網線

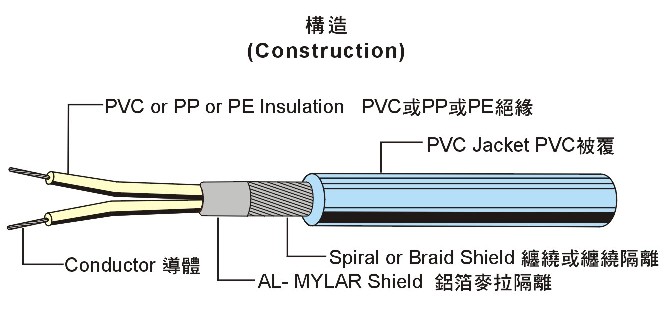

■產品結構 CABLE CONSTRUCTION:
Conductor
導體
Insulation
Diameter
N0.
Of core
Drain
Wire
Shield
Material
Sprial 纏繞
No./mm
Braid 編織
No./No./mm
Jacket
Thickness
Overall
Diameter
線號線數/線徑絕緣厚度芯數地線隔離材質被覆厚度完成外徑
AWGN o./m mmmNoNo./mm- - -mmmm
287/0.1270.902- - -Paper- - -0. 532.70
2217/0.161.183- - -Paper- - -0.594.00
287/0.1270.824- - -AL57/0.101.004.30
2217/0.161.20417/0.16AL- - -0.454.00
2819/0.080.805- - -Paper16/6/0.120.884.80
2217/0.161.185- - -Paper- - -0.524.50
287/0.1270.826- - -AL79/0.100.684.30
307/0.1020.7577/0.127AL16/7/0.100.554.00
287/0.1270.9077/0.16- - -75/0.120.905.00
2819/0.080.868- - -Paper24/5/0.100.744.80
287/0.1270.829- - -Paper81 /0.120.744.90
287/0.1270.90107/0. 16AL- - -0.575.00
3011/0.080.7011- - -Paper76/0.120 . 904.90
