當前位置: 首 頁 > 產品展示 > UL電腦線 > UL2725 USB線
UL2725 USB線

UL2725 USB線

  • 所屬分類:UL電腦線
  • 瀏覽次數:0
  • 發布時間:2022-08-06 13:55:12
  • 產品概述

UL2725 USB線

■產品說明:
●導體使用裸軟銅或鍍錫軟銅絞線
●半硬PVC 絕緣
● 芯線集合后用棉紙帶隔離
●PVC 被覆,多芯電腦線與資料傳輸電纜
●額定溫度:60℃ or 80℃;額定電壓:30V
●通過UL VW-1 垂直耐燃測試
●參考標準:UL758,UL1581

■應用:
●滑鼠,電視游樂(lè )器,儀器,電腦線


■PRODUCT DESCRIPTION:
●Tinned or bare stranded copper conductor
●Color-coded SR-PVC insulation
●Cores cabled under tissue tape shield
●PVC jacket , multi-core computer and data transmission cable
●Rated temperature:60℃ or 80℃.Rated voltage:30V
●Passes UL VW-1 vertical flame test
●Reference standard:UL758,UL1581

■APPLICATIONS:
●Use for mouse,TV game,instrumentation and computer cables


UL2725 USB線

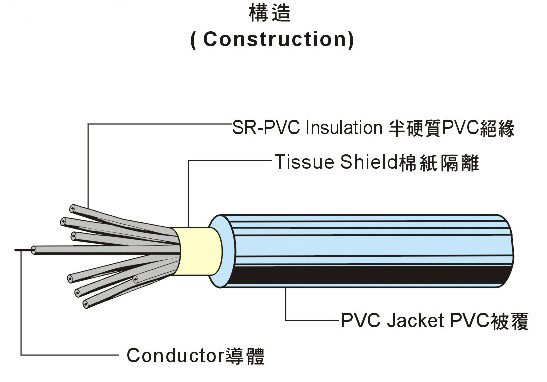

■ 產品結構CABLE CONSTRUCTION:
Conductor 導體 Insulation Thickness No.of Core Jacket Thickness Overall Diameter
線號 線數/線徑 絕緣厚度 芯數 被覆厚度 完成外徑
AWG No./mm mm No. mm mm
30 7/0.102 0.23 0.26 2.30
2.50
2.70
2.90
3.00
3.10
3.40
3.60
10 3.70
12 4.00
28 7/0.127 0.23 0.26 2.40
2.60
2.80
3.00
3.10
3.30
3.60
3.80
10 3.90
12 4.20
26 7/0.16 0.23 0.26 2.60
2.80
3.00
3.30
3.40
3.60
3.90
4.10
10 4.30
12 4.60
24 7/0.203 0.23 0.26 2.90
3.10
3.40
3.70
3.80
4.00
4.40
4.60
10 4.80
12 5.20
