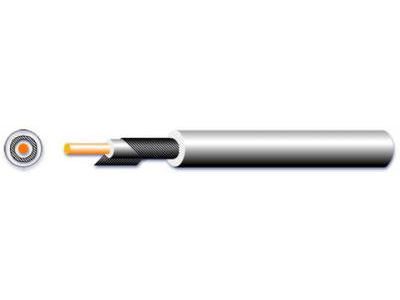

UL10800 Halogen Free Single Conductor Shielded Wire 無鹵單芯屏蔽線

■產品說明
●額定溫度：80℃
●額定電壓：300V
●參考標準：UL758,UL1581,CSA C22.2No.210.2
●導體使用單支或絞合鍍錫或裸銅線
●FR-PE 絕緣，符合ROHS 環保標準
●FR-PE 護套，符合ROHS 環保標準
●鍍錫或裸銅纏繞或編織屏蔽
●通過UL 水平及CSA FT2 阻燃測試
●使用標準絕緣厚度、易裁線、易剝皮
●用于一般電子、電器設備內部連接線

■PRODUCT DESCRIPTION
●Rated temperature：80℃
●Rated voltage：300V
●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor
●FR-PE insulation, comply with ROHS environmental standard
●FR-PE jacket , comply with ROHS environmental standard
●Tinned or bare copper wire spiral or braid shield
●Passes UL Horizontal and CSA FT2 flame test
●Uniform insulation thickness to ensure easy strippingand cutting
●For general purpose internal wiring of appliance
