當前位置: 首 頁 > 產品展示 > UL低煙無鹵 > UL21458 Flat Ribbon Wire排線

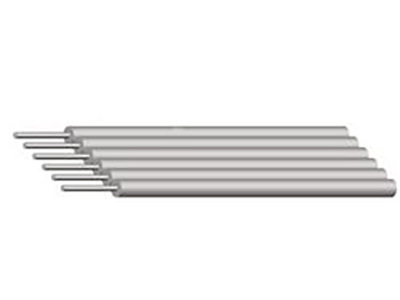

UL21458 Flat Ribbon Wire排線

UL21458 Flat Ribbon Wire排線

  • 所屬分類:UL低煙無鹵
  • 瀏覽次數:0
  • 發布時間:2022-08-05 17:09:54
  • 產品概述

UL21458 Flat Ribbon Wire排線

■說明
●額定溫度:80°C
●額定電壓:300V
●參考標準:UL 758,UL 1581,CSA
C22.2 No.210
●導體使用絞合祼銅,鍍錫銅線
●導體線規:32 - 16AWG
●耐燃改性聚苯醚–聚乙烯絕緣
●燃燒等級:UL VW-1及CSA FT1垂直耐燃測試


■應用
●用于電子設備內部聯機


■PRODUCT DESCRIPTION
●Rated temperature: 80°C
●Rated voltage: 300V
●Reference standard: UL 758, UL 1581,
  CSA C22.2 No.210
●Stranded bare or tinned copper conductor
●Gauge size: 32 - 16AWG
●mPPE-PE insulation
●Flammability grade: UL VW-1&CSA FT1 vertical flame test

■APPLICATION
●For internal wiring of electronic equipment


■產品結構CABLE CONSTRUCTION
Part No.
型號
Conductor 導體Cores
芯數
Insulation 絕緣 Max. Conductor
DC Resistance
最大導體電阻
(Ω/km)
AWG
線規
No./mm
線數/線徑
Diameter
線徑 (mm)
Material
材質
Diameter
線徑 (mm)
UL21458-001287/0.1270.382CmPPE-PE1.24 x 2.58239
UL21458-002267/0.16 0.482C1.34 x 2.78150
UL21458-003247/0.20 0.62C1.45 x 3.0494.2
UL21458-004227/0.2540.762C1.62 x 3.3459.4
UL21458-0052026/0.16 0.942C1.80 x 3.7036.7
UL21458-0061841/0.161.182C2.04 x 4.2323.2
UL21458-007287/0.1270.383C1.24 x 3.92239
UL21458-008267/0.16 0.483C1.34 x 4.22150
UL21458-009247/0.20 0.63C1.45 x 4.6394.2
UL21458-010227/0.2540.763C1.62 x 5.0659.4
UL21458-011287/0.1270.384C1.24 x 5.26239
UL21458-012267/0.16 0.484C1.34 x 5.66150
UL21458-013247/0.20 0.64C1.45 x 6.2294.2
UL21458-014227/0.2540.764C1.62 x 6.7859.4
UL21458-015287/0.1270.385C1.24 x 6.60239
UL21458-016267/0.16 0.485C1.34 x 7.10150
UL21458-017247/0.20 0.65C1.45 x 7.8194.2
UL21458-018227/0.2540.765C1.62 x 8.5059.4
UL21458-019287/0.1270.386C1.24 x 7.94239
UL21458-020267/0.16 0.486C1.34 x 8.54150
UL21458-021247/0.20 0.66C1.45 x 9.4094.2
UL21458-022227/0.2540.766C1.62 x 10.2259.4
UL21458-023287/0.1270.387C1.24 x 9.28239
UL21458-024267/0.16 0.487C1.34 x 10.00150
UL21458-025247/0.20 0.67C1.45 x 11.0094.2
UL21458-0262217/0.160.767C1.62 x 11.9459.4
