當前位置： 首 頁 > 產品展示 > UL電子線 > UL2468 Flat Ribbon Wire 并排線
UL2468 Flat Ribbon Wire 并排線

UL2468 Flat Ribbon Wire 并排線

  • 所屬分類：UL電子線
  • 瀏覽次數：0次
  • 發布時間：2022-08-05 18:41:46
我要詢價
  • 產品概述

UL2468 Flat Ribbon Wire 并排線

■說明：
? 導體使用鍍錫軟銅線，先絞后鍍或先鍍后絞再鍍之絞線軟銅
? 額定溫度：80℃.額定電壓：300volts
? 可通過UL VW-1 垂直耐燃測試
? 具抗酸，耐油性，防潮，防霉等特性
? 參考標準： UL 758；UL 1581


■ 應用：
? 用于電器及電腦設備內部配線


■ PRODUCT DESCRIPTION：
? Tinned or top-coated,stranded copper conductor.
? Rated temperature：80℃. Rated voltage：300volts.
? Passes UL VW-1 vertical flame test.
? Resistant to acids,alkalies,oils,moisture and fungus.
? Reference standard：UL subject 758, UL 1581.


■ APPLICATIONS：
? For use in internal wiring ofappliances and computers.

UL2468 Flat Ribbon Wire 并排線

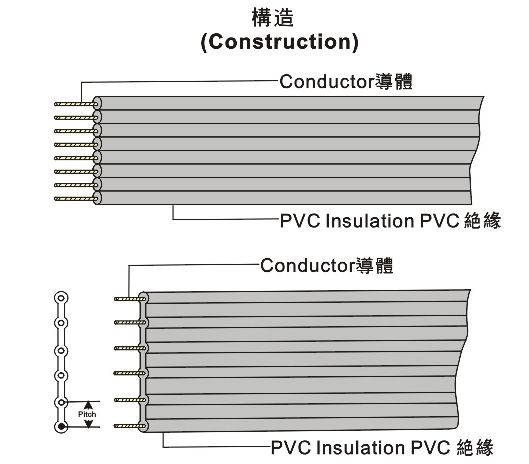

■ 產品結構 CABLE CONSTRUCTION：
Conductor
導體 		Pitch No.
Of core 		Insulation Thickness Overall
Diameter
線號 級數/線徑 間距 芯數 絕緣厚度 完成外徑
AWG No./mm mm No. mm mm
24  7/0.203 1.6 2 0.45 1.5x3.1
3 1.5x4.7
4 1.5x6.3
5 1.5x7.9
6 1.5x9.5
7 1.5x11 .1
8 1.5x12.7
9 1.5x14.3
10 1.5x15.9
11 1.5x17.5
12 1.5x19.1
13 1.5x20.7
14 1.5x22.3
15 1.5x23.9
16 1.5x25.5
17 1.5x27.1
24  7/0.203 2 2 0.45 1.5x3.5
3 1.5x5.5
4 1.5x7.5
5 1.5x9.5
6 1.5x11.5
7 1.5x13.5
8 1.5x15.5
9 1.5x17.5
10 1.5x19.5
11 1.5x21.5
12 1.5x23.5
13 1.5x25.5
14 1.5x27.5
15 1.5x29.5
16 1.5x31.5
17 1.5x33.5
24  7/0.203  2 . 50 2 0.45 1. 5x4
3 1.5x6.5
4 1.5x9.0
5 1.5x11.5
6 1.5x14.0
7 1.5x16.5
8 1.5x19.0
9 1.5x21.5
10 1.5x24.0
11 1.5x26.5
12 1.5x29.0
13 1.5x31.5
14 1.5x34.0
15 1.5x36.5
16 1.5x39.0
17 1.5x41.5
